Android ListView 聊天界面

本章节我们用 ListView 实现一个类似微信聊天布局的页面,另一方面加强下前一章节的可复用 Base Adapter 的认识

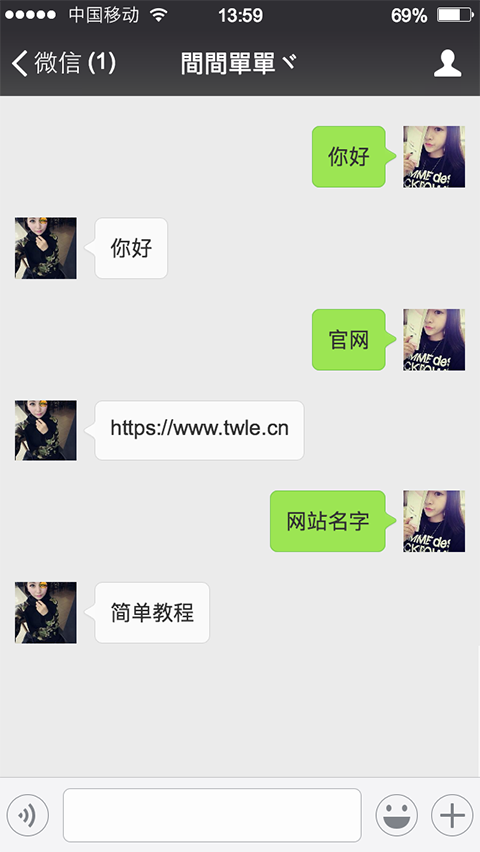

仔细看一下你手机上的微信聊天布局,自己发的东西永远在右边,而朋友发的永远在左边

如果用 ListView 来实现,那么就有两种不同风格的 item ,一左一右

思路

Android Adapter 适配器 章节,我们有说过,Adapter 接口定义了两个方法 getItemViewType()getViewTypeCount() 用来返回 View 对应哪个类型和 View 类型的数量

本章我们主要就是重写这两个方法,来获取左右两边不同的 View

  1. 创建一个 空的 Android 项目 cn.twle.android.ListViewChart

  2. 下载 /static/i/android/it_language_icon.zip 解压并把所有的图片拖到 res/drawable 目录

  3. 新建一个包 cn.twle.android.common 然后下载 /static/i/android/MsAdapter.java 放到该目录下

  4. 修改 activity_main.xml 添加一个列表

    <?xml version="1.0" encoding="utf-8" ?>
    <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent" >

        <ListView
            android:id="@+id/listview_chat"
            android:layout_width="match_parent"
            android:layout_height="match_parent"/>
    </RelativeLayout>

  5. 接下来添加两种类型的列表项,在 res/layout 目录下新建一个文件 chat_left.xml

    <?xml version="1.0" encoding="utf-8"?>
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="horizontal"
        android:padding="5dp">

        <ImageView
            android:id="@+id/icon"
            android:layout_width="32dp"
            android:layout_height="32dp"
            android:layout_weight="1"
            android:src="@drawable/scala" />

        <TextView
            android:id="@+id/name"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="6"
            android:text="Scala"
            android:textSize="20sp" />

    </LinearLayout>

  6. 接下来添加两种类型的列表项,在 res/layout 目录下新建一个文件 chat_right.xml

    <?xml version="1.0" encoding="utf-8"?>
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="horizontal"
        android:padding="5dp">

        <TextView
            android:id="@+id/name"
            android:gravity="right"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="6"
            android:text="Kotlin"
            android:textSize="20sp" />

        <ImageView
            android:id="@+id/icon"

            android:layout_weight="1"
            android:layout_width="32dp"
            android:layout_height="32dp"
            android:src="@drawable/kotlin" />

    </LinearLayout>

  7. MainActivity.java 目录下创建一个文件 ChatBean.java

    package cn.twle.android.listviewchat;

    class ChatBean {

        private String name;
        private String say;
        private int icon;

        public ChatBean() {}

        public ChatBean(String name,int icon,String say) {
            this.name = name;
            this.say  = say;
            this.icon = icon;
        }

        public int getIcon() {
            return icon;
        }

        public void setIcon(int icon) {
            this.icon = icon;
        }

        public String getName() {
            return  name;
        }

        public String getSay() {
            return  say;
        }

        public void setName(String name) {
            this.name = name;
        }

        public void setSay(String say) {
            this.say = say;
        }

        public Boolean isMe() {
            return name.toLowerCase().equals("kotlin");
        }
    }

  8. 修改 MainActivity.java

    package cn.twle.android.listviewchat;

    import cn.twle.android.common.MsAdapter;
    import android.content.Context;
    import android.util.Log;
    import android.view.ViewGroup;
    import android.os.Bundle;
    import android.support.v7.app.AppCompatActivity;
    import android.widget.ListView;
    import android.view.View;

    import java.util.ArrayList;

    public class MainActivity extends AppCompatActivity {

        private ListView listview_chat;

        private ArrayList<ChatBean> mData = null;
        private MsAdapter chatAdapter = null;

        @Override
        protected void onCreate(Bundle savedInstanceState) {
            super.onCreate(savedInstanceState);
            setContentView(R.layout.activity_main);

            //数据准备:
            mData = new ArrayList<ChatBean>();

            mData.add(new ChatBean("Kotlin", R.drawable.kotlin,"Kotlin"));
            mData.add(new ChatBean("Swift",  R.drawable.swift,"Swift"));
            mData.add(new ChatBean("Kotlin", R.drawable.kotlin,"Kotlin"));
            mData.add(new ChatBean("Scala", R.drawable.scala,"Scala"));
            mData.add(new ChatBean("TypeScript", R.drawable.typescript,"TypeScript"));

            listview_chat = (ListView) findViewById(R.id.listview_chat);

            chatAdapter = new MsAdapter<ChatBean>(mData,R.layout.chat_left){

                //定义两个类别标志
                private static final int TYPE_LEFT = 0;
                private static final int TYPE_RIGHT = 1;

                //多布局的核心,通过这个判断类别
                @Override
                public int getItemViewType(int position) {

                    ChatBean chat = (ChatBean)mData.get(position);

                    if (chat.isMe()) {
                        return TYPE_RIGHT;
                    }

                    return TYPE_LEFT;
                }

                // 类别数目
                @Override
                public int getViewTypeCount() {
                    return 2;
                }

                public View getView(int position, View convertView, ViewGroup parent) {

                    int t = getItemViewType(position);

                    Log.d("T",String.valueOf(t));
                    int ly = R.layout.chat_left;

                    ViewHolder holder;

                    switch (t) {
                        case TYPE_LEFT:
                            ly = R.layout.chat_left;
                            holder = ViewHolder.bind(parent.getContext(), convertView, parent, ly
                                    , position);
                            break;
                        default:
                            ly = R.layout.chat_right;
                            Log.d("","in right");
                            holder = ViewHolder.bind(parent.getContext(), convertView, parent, ly
                                    , position);
                            break;

                    }

                    bindView(holder, getItem(position));
                    return holder.getItemView();
                }

                @Override
                public void bindView(ViewHolder holder, ChatBean obj)
                {
                    holder.setImageResource(R.id.icon,obj.getIcon());
                    holder.setText(R.id.name,obj.getName());
                }
            };

            listview_chat.setAdapter(chatAdapter);
        }
    }

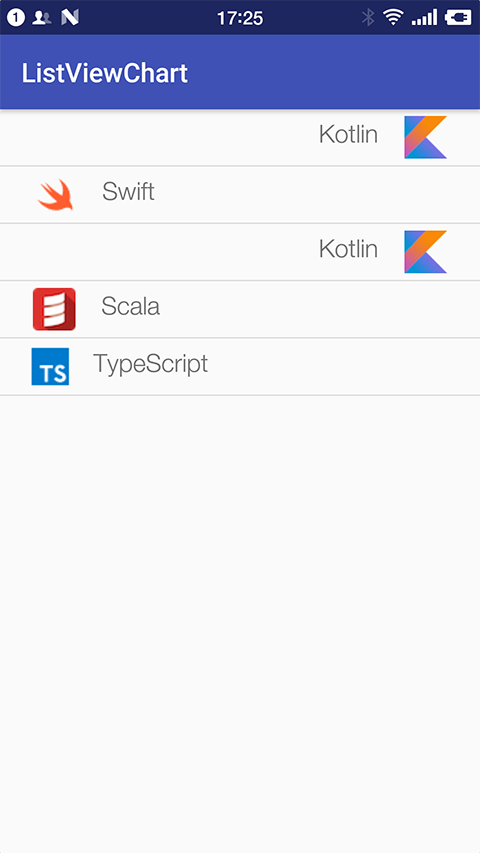

运行如下,爆丑无比
