Android TextView 文本框

Android TextView (文本框) 用于显示不需要编辑的文本,也就是说如果你想要显示几个字或者一段不用编辑的文本,第一时间就要想到 TextView

TextView 基础属性

属性 说明
android:id 为 TextView 设置一个组件 id,方便在 Java 中通过 findViewById() 方法获取到该对象
android:layout_width TextView 的宽度,值一般为 wrap_content 或者 match_parent(fill_parent),前者是控件显示的内容多大,控件就多大,而后者会填满该控件所在的父容器
当然也可以设置成特定的大小,比如 200dp
android:layout_height TextView 的宽度,内容同上
android:gravity 设置控件中内容的对齐方向,这个属性与布局中的相同
android:text 设置显示的文本内容,一般将字符串写到 string.xml 文件,然后通过 @string/xxx 来引用
android:textColor 设置字体颜色,一般将颜色写入 colors.xml 文件,然后通过 @color/xxx 引用
android:textStyle 设置字体风格,可以用竖线(|)叠加,比如 bold|italic
有三个可选值:
normal(无效果)
bold(加粗)
italic(斜体)
android:textSize 设置字体大小,单位一般用 sp
android:background 设置 TextView 的背景颜色,可以是图片

范例

我们写一个范例来演示下这些基础属性

  1. 创建一个 空的 Android 项目 cn.twle.android.TextView

  2. 修改 res/values/strings.xml 为添加几个字符串

    <?xml version="1.0" encoding="utf-8" ?>
    <resources>
        <string name="app_name">TextView</string>

        <string name="login">登录</string>
        <string name="signup">注册</string>
        <string name="hello">Hello,简单教程</string>
    </resources>

  3. 修改 res/values/colors.xml 添加几个颜色

    <?xml version="1.0" encoding="utf-8" ?>
    <resources>
        <color name="colorPrimary">#3F51B5</color>
        <color name="colorPrimaryDark">#303f9f</color>
        <color name="colorAccent">#FF4081</color>

        <color name="red">#ff0000</color>
        <color name="green">#00ff00</color>
        <color name="blue">#0000ff</color>
        <color name="white">#ffffff</color>
        <color name="black">#000000</color>
    </resources>

  4. 修改 activity_main.xml 文件

    <?xml version="1.0" encoding="utf-8" ?>
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical"
        tools:context = ".MainActivity"
        android:background = "@color/white">

        <TextView
            android:id="@+id/login"
            android:layout_width="match_parent"
            android:layout_height="50dp"
            android:gravity="center"
            android:text="@string/login"
            android:textColor="@color/white"
            android:textStyle="bold"
            android:background="@color/green"
            android:textSize="18sp" />

        <TextView
            android:id="@+id/signup"
            android:layout_width="400dp"
            android:layout_height="100dp"
            android:gravity="center"
            android:text="@string/signup"
            android:textColor="@color/white"
            android:textStyle="italic"
            android:background="@color/blue"
            android:textSize="18sp" />

        <TextView
            android:id="@+id/hello"
            android:layout_width="200dp"
            android:layout_height="match_parent"
            android:gravity="center"
            android:text="@string/hello"
            android:textColor="@color/white"
            android:textStyle="bold|italic"
            android:background="@color/red"
            android:textSize="18sp" />
    </LinearLayout>

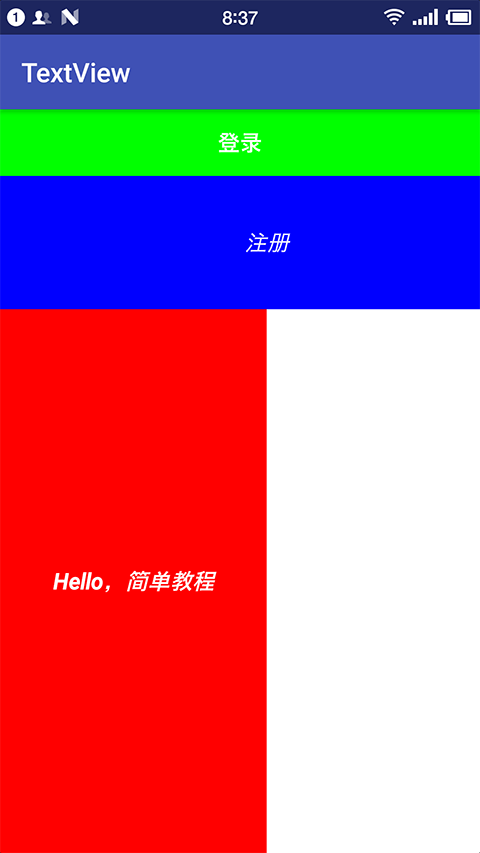

运行结果如下

参考文档

  1. Android TextView 官方文档
